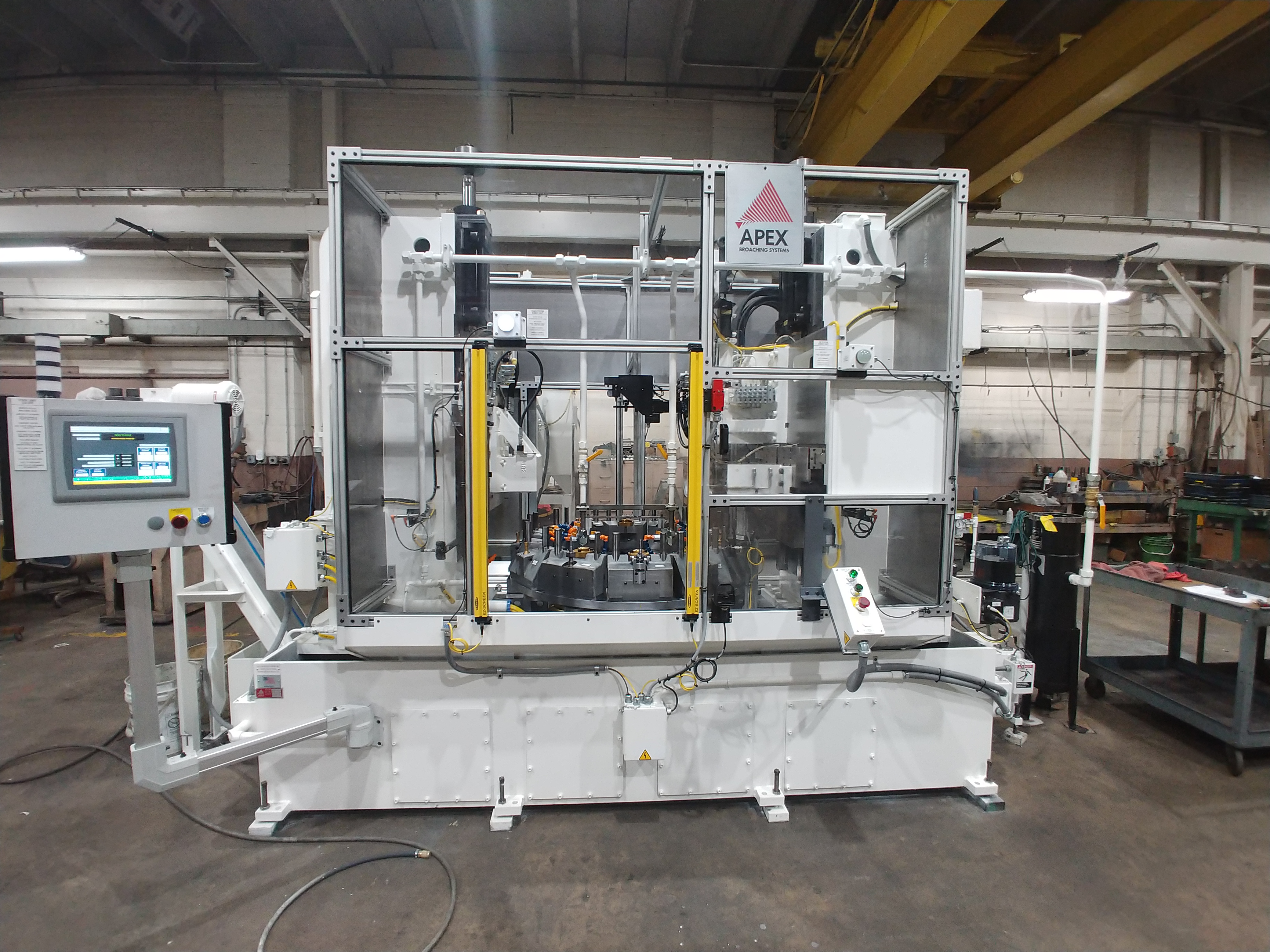

Blind Spline Broaching Machines

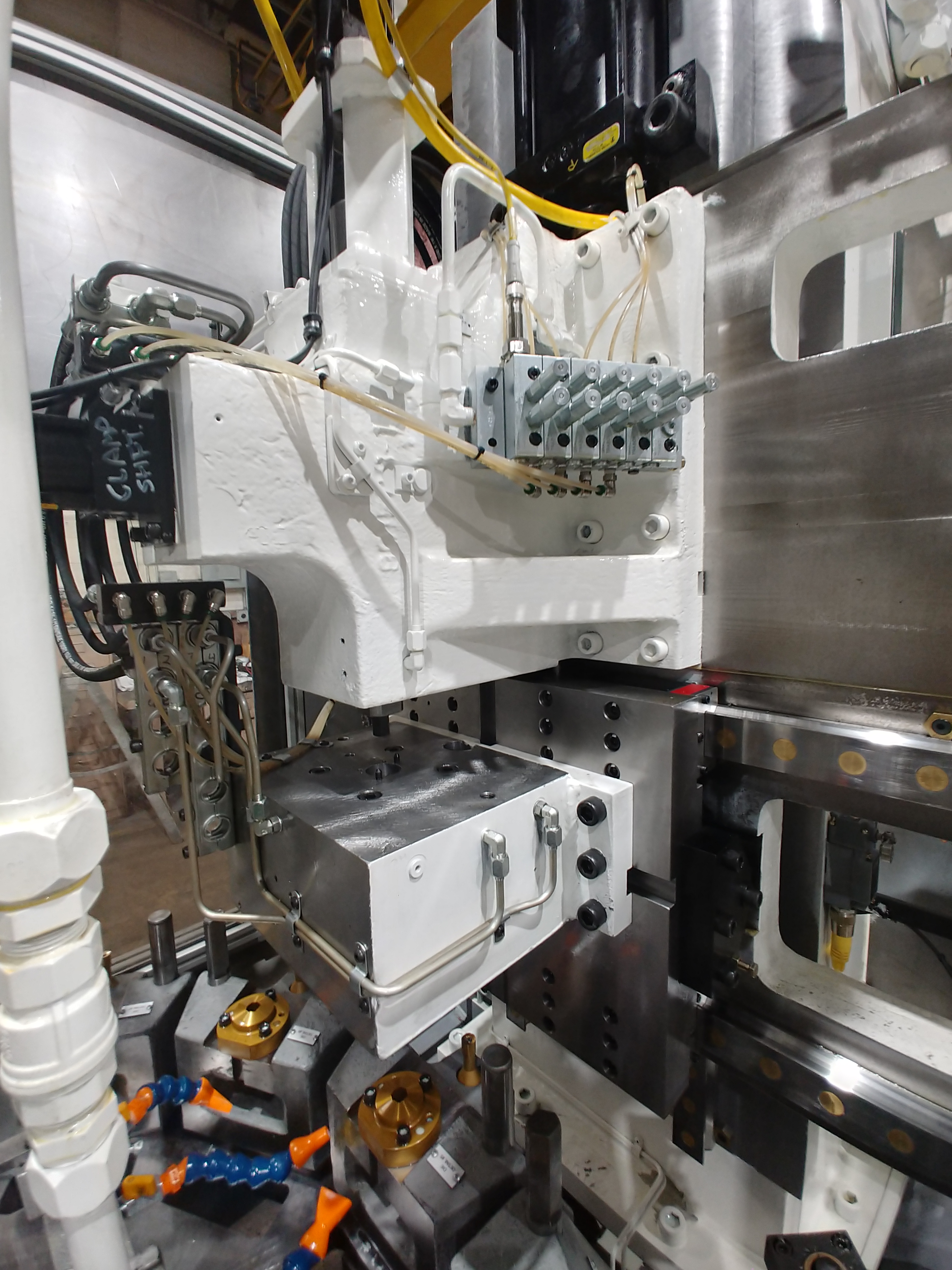

Apex Broaching Systems Blind Hole or Blind Spline broaching machines are built to perform, and are ideal for part applications where the part requires an internal or external spline that ends at a shoulder rather than going through the part. Progressive broach tooling is mounted on a linear or rotating table, a part or pair of parts is automatically loaded onto expanding arbors under a single vertical ram. The parts are pushed into the tooling in quick succession and the table moves for automatic part removal.

• Splines can be located internally or externally on the part
• Blind Spline Broaching is especially suitable for high production rates and will outperform gear shaping or hobbing.

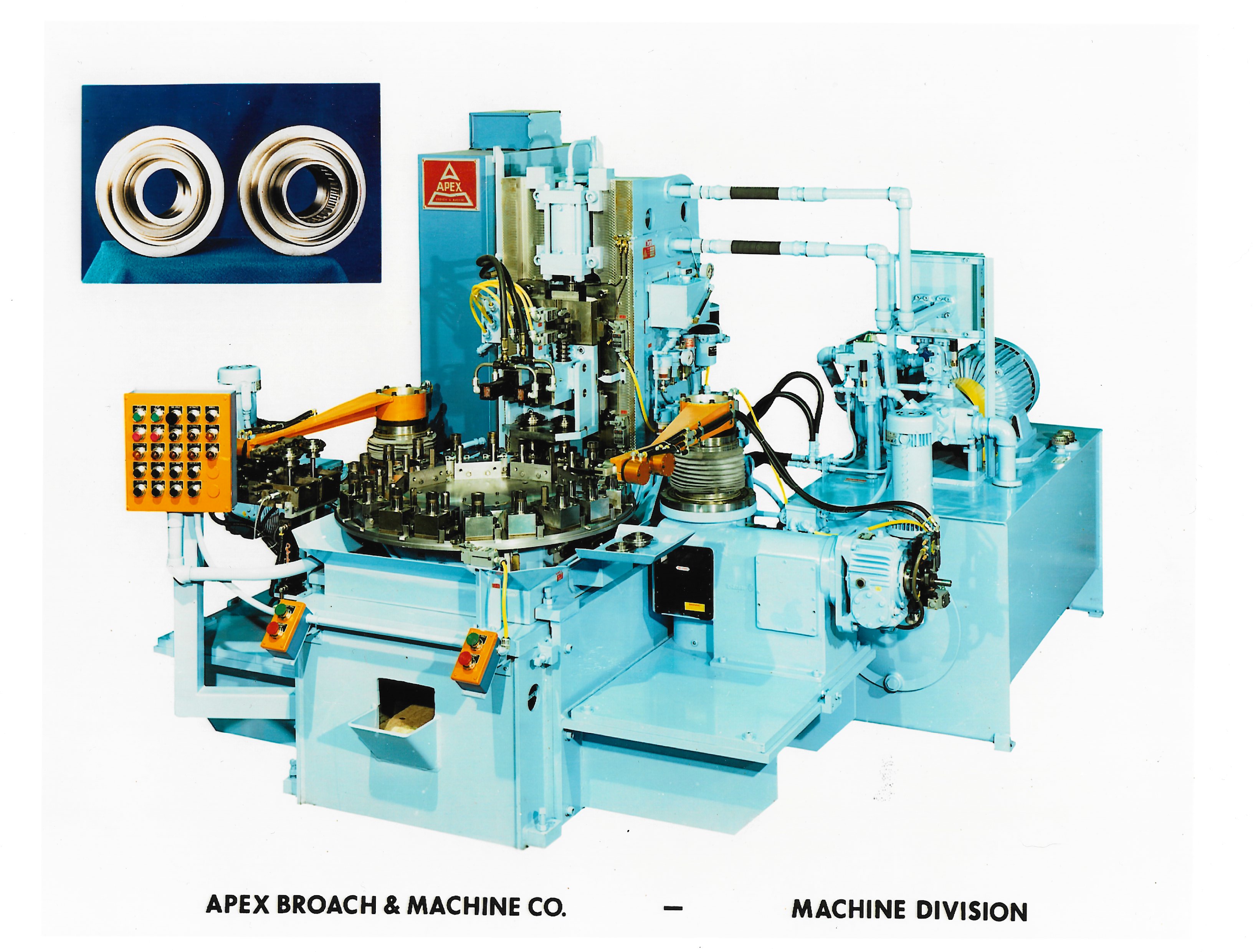

• Blind Spline Broaching machines can be either a rotary dial type machine or an in-line-transfer style machine, depending on your part application
• Internal and External splines can be machined at the same time using Blind Spline Broaching
