Vertical Broaching Machines
Apex Broaching Systems vertical broaching machines come in several forms including:

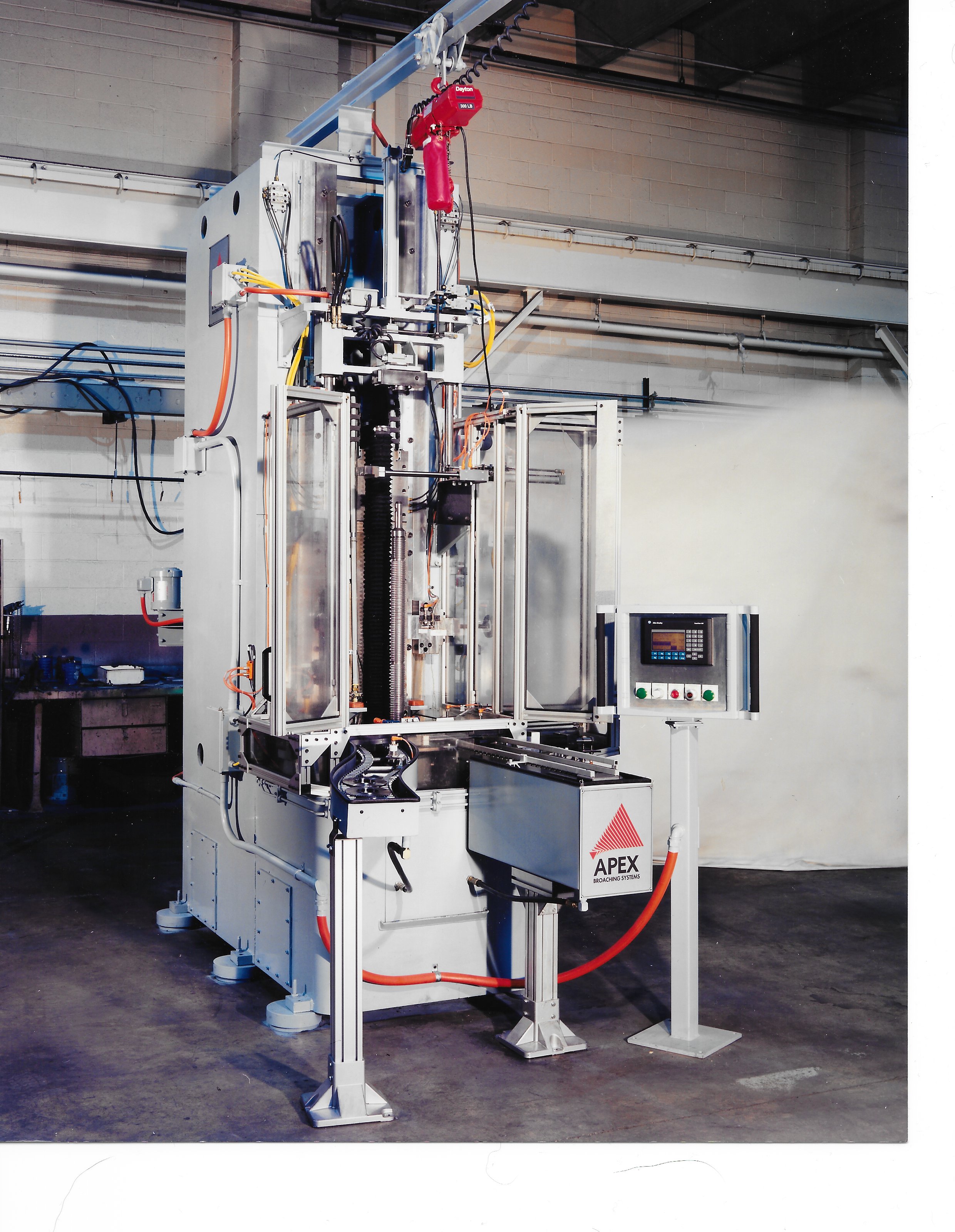

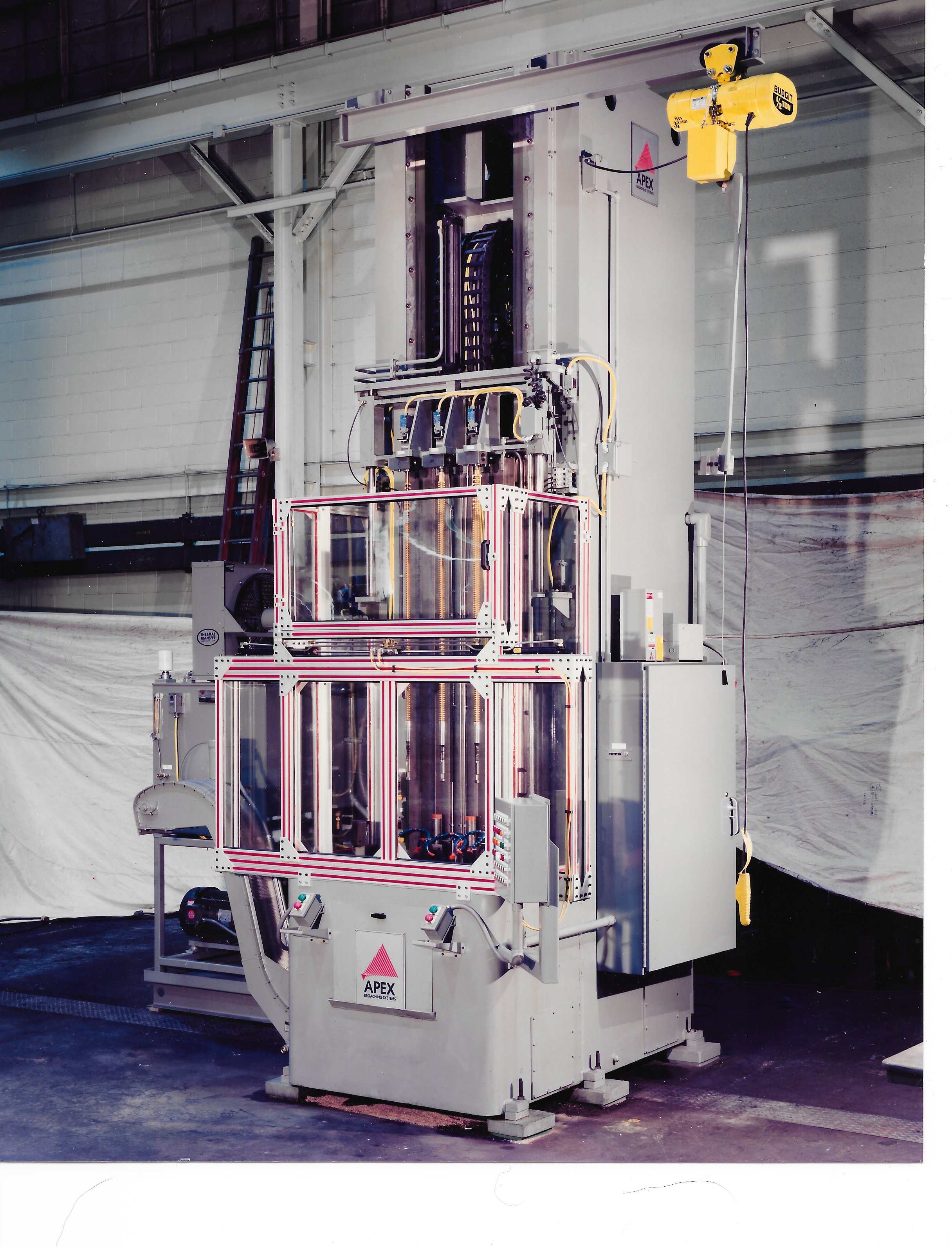

- Apex Vertical Table-Up Broaching Machines operate from floor level, no platform or pit is required, have automatic tool handling, can perform a helical operation and is suitable for cell manufacturing with high production rates.

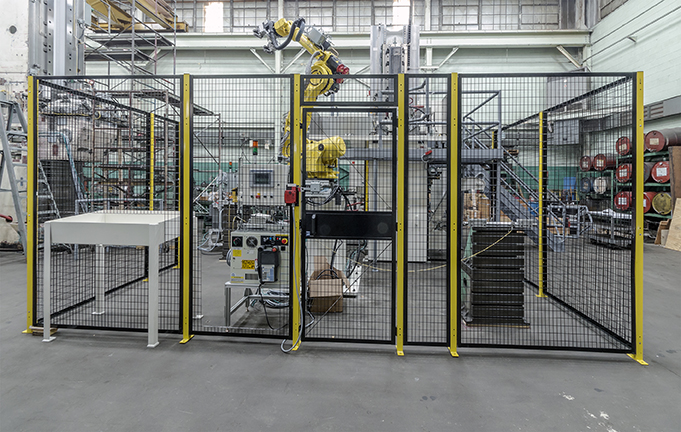

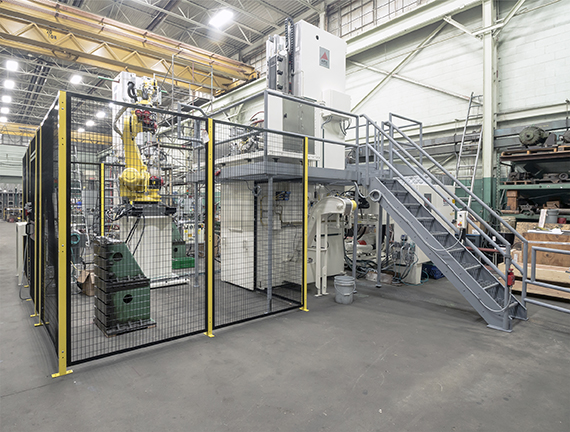

- Apex Surface Broaching Machines can be single station or multiple stations. Our latest design incorporates a linear rail system for improved performance and part quality.

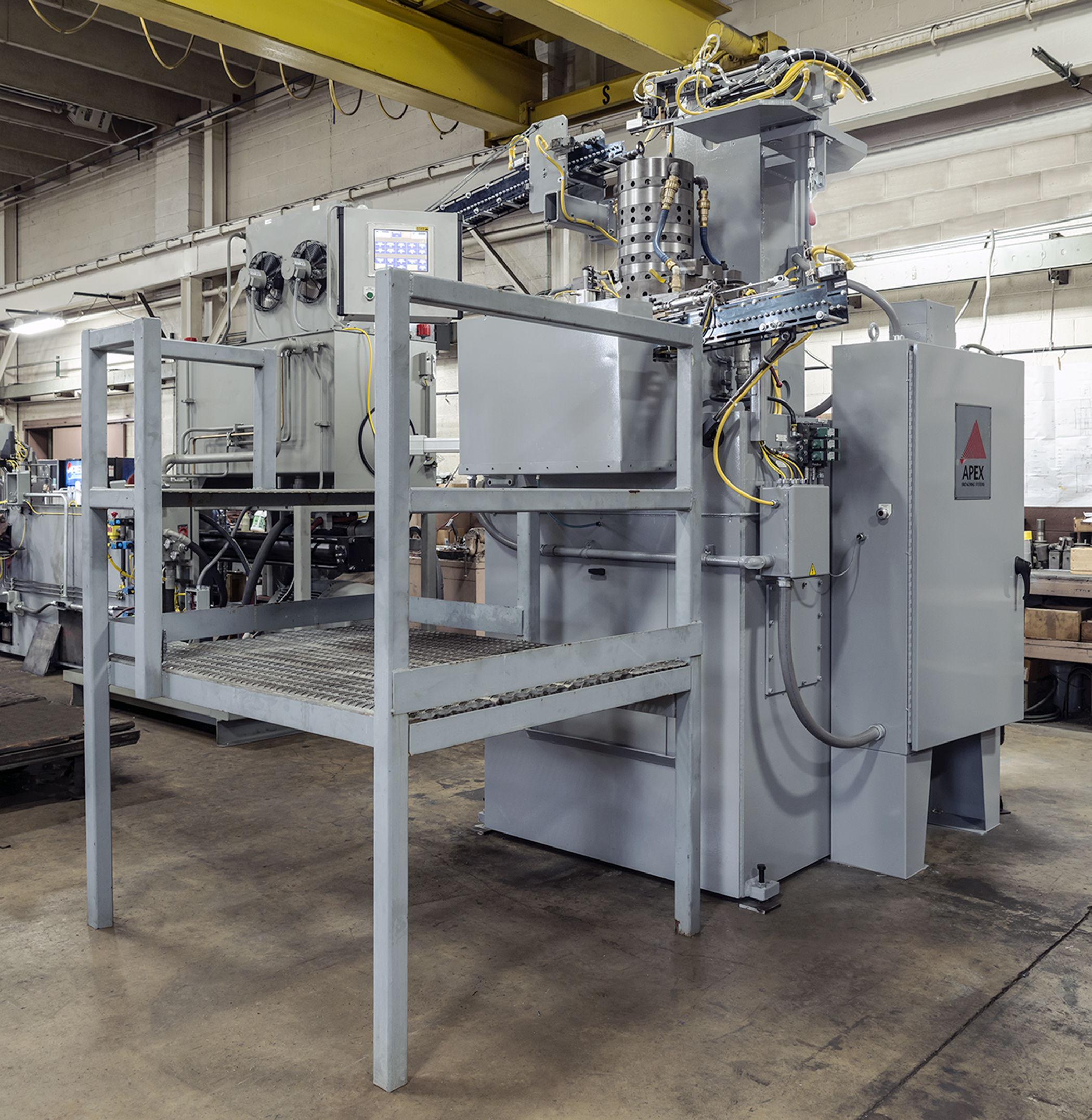

- Apex Pot Broaching Machines perform for part applications with external serrations and teeth.
- Apex Vertical Internal Pull Down Broaching Machines are ideal for internal broaching applications of almost every kind and conserve floor space.
- Apex Tripex Broaching Machines offer versatility by being convertible between pull broaching, surface broaching or pot broaching and are suitable for moderate production rates.
- Apex Table Top Broaching Machines are economical for slot and keyway part applications with lower production rates.
- Internal involute splines
- Internal SAE splines
- Rifling
- Internal forms
- Round, square, hex holes
- Keyways
- Internal serrations
- Internal surfaces
- External serrations
- External flat surfaces
-
Internal Spline and Forms Broach Part Applications
Internal spline and forms parts are crucial components in a wide range of industrial applications, leveraging their design to fulfill essential roles in machinery and equipment across various sectors. Applications and Industrial Uses Torque Transmission: A primary function of internal splines is to facilitate the efficient transmission of torque between components. This is particularly vital in automotive powertrain systems, where they transfer torque from the engine to the wheels, as well as in steering mechanisms, translating input from the steering wheel to the steering system. ...
